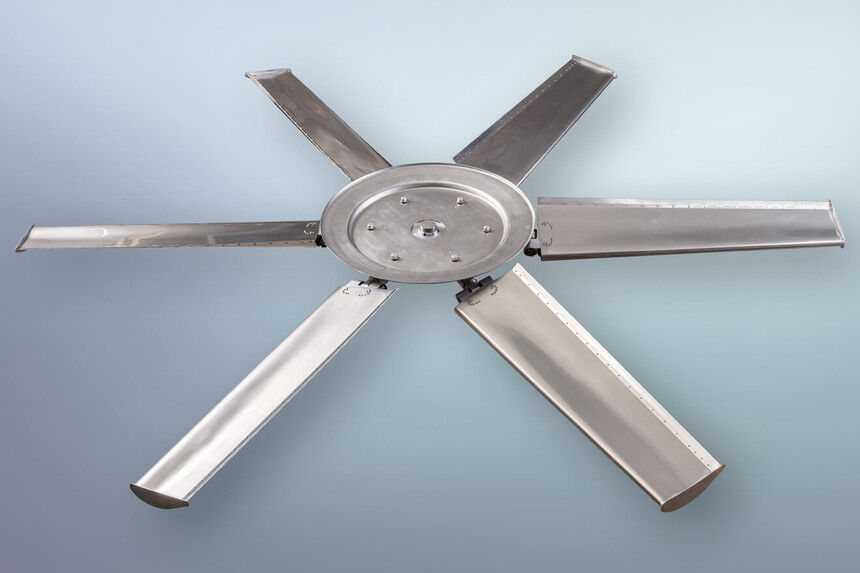

Moore Fan CLASS 10000

The Most VersatilityIn An Axial Flow Fan

As the workhorse of the Moore family of fans, you will find our Class 10000 model in a wide array
of applications -- from air coolers to cooling towers, and radiators to warehouse ventilationBecause of its adjustable diameter hubs and blade angles, the Class 10000 is capable ofachieving optimal performance at lower speeds and reduced noise levels than the competitionResiliently mounted blades also make the Class 10000 an ideal choice for variable speed operations.

For General UseApplications

With innovations you will not find anywhere else in the industry, you can find the Moore Class10000 Standard Chord (SC) fan in use all over the world. The manually adiustable version of theClass 10000 SC is particularly ideal for installations with shallow rings and in retrofit situationsbecause of its low-profile desian, The heavy-duty fan offers a strenathened hub for encine drivenapplications, while optional vortex tips can reduce noise levels two to three decibels where soundis a factor. Blade diameters range from 3 to 24 feet for the widest use of industrial air flowapplications. The SC fan is available in left-hand or right-hand rotation.

OPTIONAL EQUIPMENT
We custom manufacture all of our fans to suit your specific application. Our optional equipmentand services help ensure our fans fit your exact requirements.

AirBrake
Our anti-windmilling device easily installs on the shaft or bushing of your fan drive system toprevent reverse rotation. Maintenance-free and featuring a low-profile design, AirBrake" makesyour fans safer to maintain while extending the life of your drive systems.

Anodized Blades
When specified, we can anodize aluminum blades on select models

ATEX Certified Tips
In hazardous or potentially explosive atmospheres, our plastic ATEX certified tips ensure safe andspark-free operation.

Root Seals
Riveted onto the root of the blade, the seals prevent water and other debris from entering the body of the blade

Extended Hubs
Extended hubs allow for greater clearance between the fan and drive system, which makes themideal for installation directly on the motor or gearbox and in a wide range of aftermarket situations

Automatic Hub Version
The Class 10000 SC Automatic Hub is a version of the Class 10000 SC fan with a pneumaticallyactuated hub that can adjust fan blade angles during fan operation. For precision coolingapplications, the automatic hub fan to change cooling on demand.

This model works with a standard instrument air pressure of 3 to 15 psi and a constant 55 psisupply, but other ranges are available. If noise is a concern in your application, optional vortextips can help reduce noise levels.

The Class 10000 SC Automatic Hub is available in diameters from 4 to 16 feet.
